Description
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
Output 2 Connecting standard tables or checklists Connecting threads：M20X1.5 |
Ｐiston A device that produces gas through upward and downward movement |
Pump body assembly |
Output 1 Connecting standard tables or checklists Connecting threads： M20X1.5 |
Switching valve Press in to measure positing pressure Pull out to measure negative pressure |
Vent valve Close during pressurization, release gas at the end of measurement |
Pressure stabilizing valve When the output pressure is unstable Lock to maintain stable pressure |
Fine tuning Small scle increase or decrease in pressure |
Rod Drive the piston column to move through operation |
|

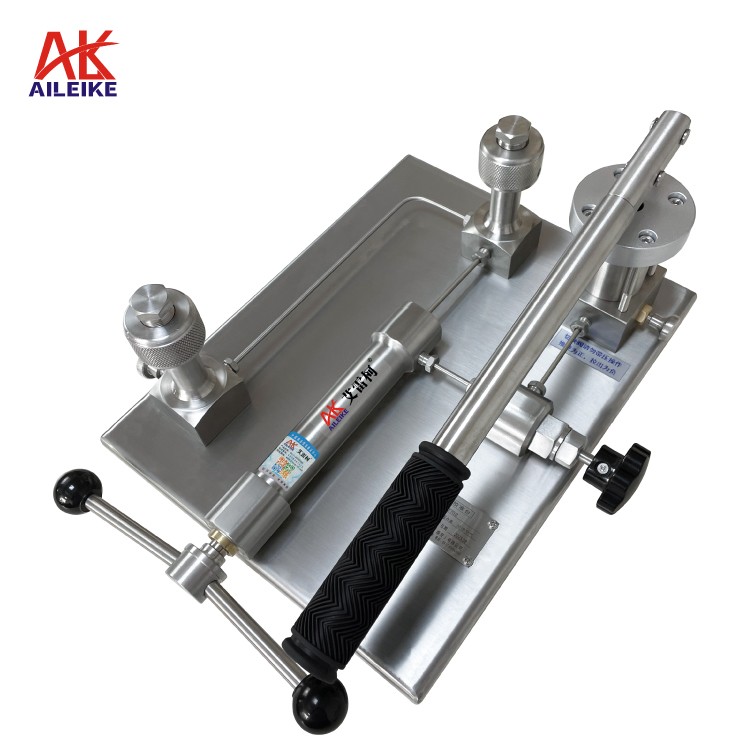

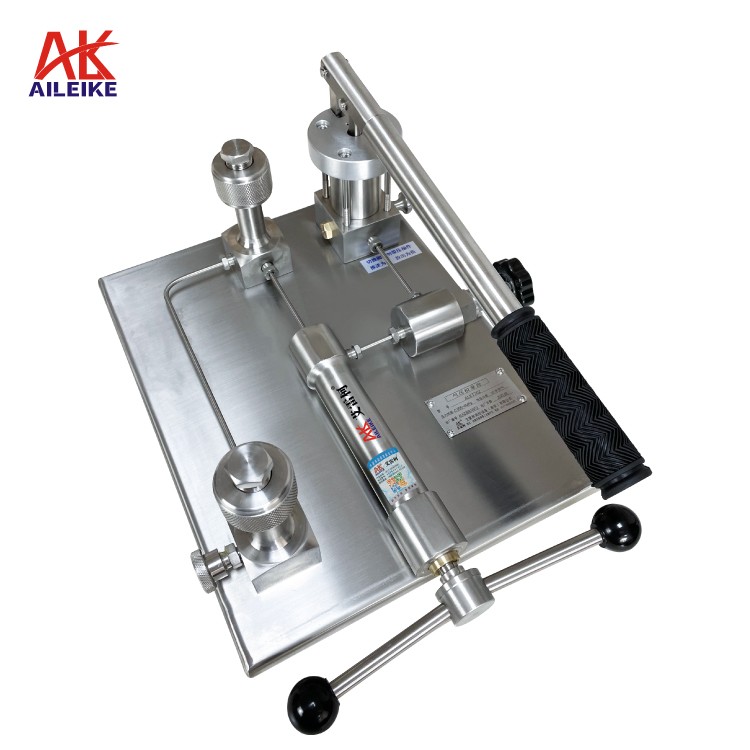

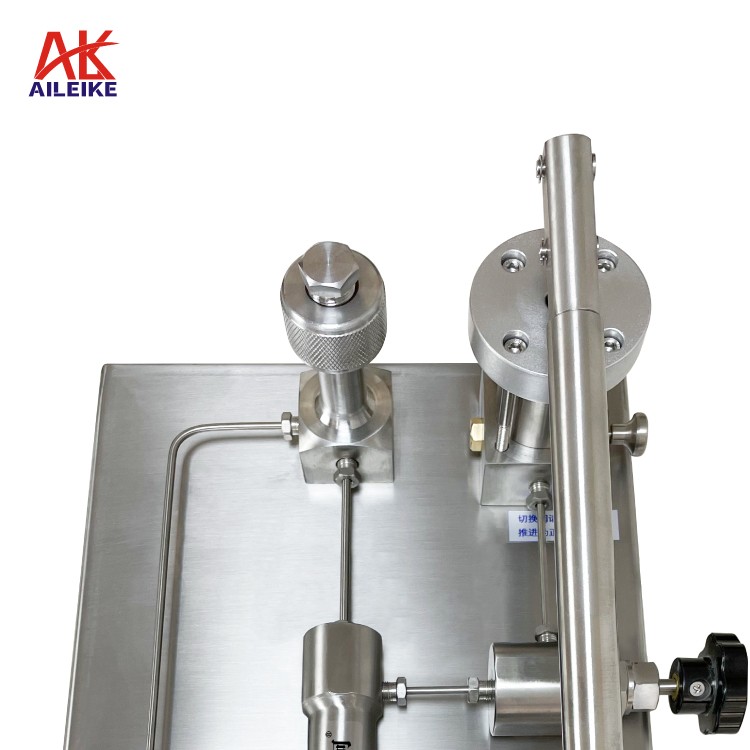

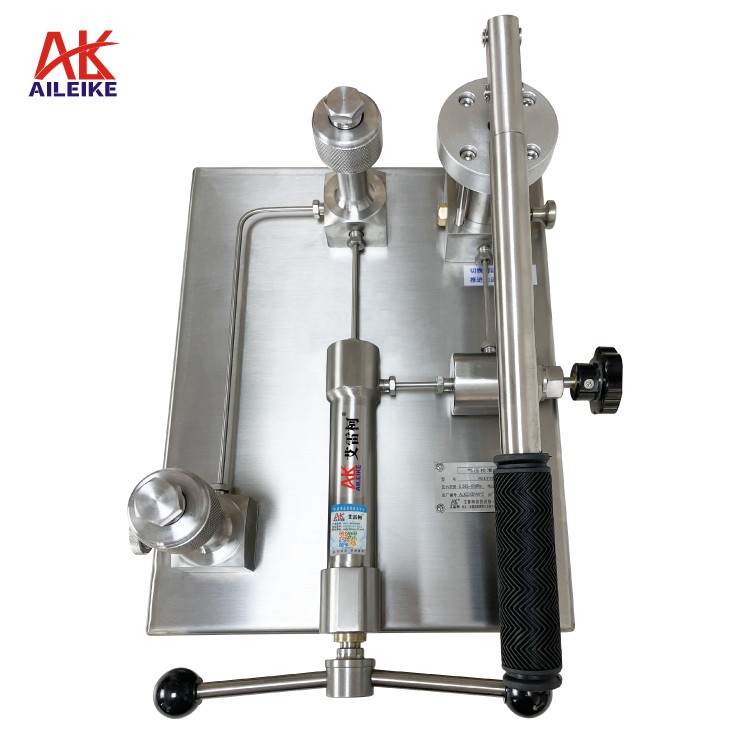

Product name |
Pressure table |
|
Model |
ALKT702G |
|
Measuring range |
-0.95~100 bar |
|
Regulating fineness |
10 pa |
|
Output port |
Two |
|
Pressure connection |
Quick thread (M20 × 1.5) |
|
Ambient temperature |
0~50℃ |
|
Measurement medium |
Clean air |
|
Way of Pressure |
Hand movement |
|
Net Weight |
Approximately 9.0kg |
|
Product size |
420×320×190mm |
|
Packaged weight |
Approximately 9.8kg(packaging material is cardboard box) |
|
Product packaging size |
460×390×290mm |
|
Product standard configuration |
Certificate of conformity × 1 Instruction manual × 1 Quality assurance card × 1 Sealing ring × 2 Plugs × 2 |
