Description
Product Information |
|
Product name |
Zirconia oxygen analyzer |
Model |
ALKYHG-IP65 |
Protection grade |
IP65 |
Sample gas temperature |
≤650℃ |
Basic error |
≤± 1% (full scale) |
Stability |
≤ ± 1% (continuous instrument calibration for 4 hours) |
Response time |
90% response within 5 seconds when connected to standard gas |
Range |
0.01~25.0% (programmable) |
Output signal |
4~20mA load resistance ≤ 500 |
Isolation repeatability |
± 0.5% of full range |
Sample gas pressure range |
± 5KPa (can be produced according to user requirements) |
Detector length |
0.4m-1.5m (length can be produced according to user requirements) |
Power supply and power consumption |
Power supply 220VAC 50~60Hz power ≤ 150W |
![](/Uploads/image/20240724/20240724160612_98464.jpg)
Product Display |
|||
01 |
02 |
03 |
04 |
Smart host |
LCD display screen |
Flange connection |
Nano scale ceramic filter |
Multi functional data display Intelligent Design of Single Chip Microcomputer Flexible and convenient settings and controls |
LCD Chinese display Humanized data display The reading is intuitive and clear |
Using standard stainless steel flange connection Good sealing and corrosion resistance
|
The probe is made of all 321 stainless steel Strong wear and corrosion resistance Strong antioxidant capacity |
![](/Uploads/image/20240724/20240724161044_46085.jpg)
1 |
2 |
3 |
4 |
5 |
6 |
7 |
Junction box |
Standard gas inlet |
Mounting flange |
φ 45x3 protective tube |
Ceramic filter |
Cable outlet hole |
Insertion depth L=150~1500mm (Can be produced according to user requirements) |

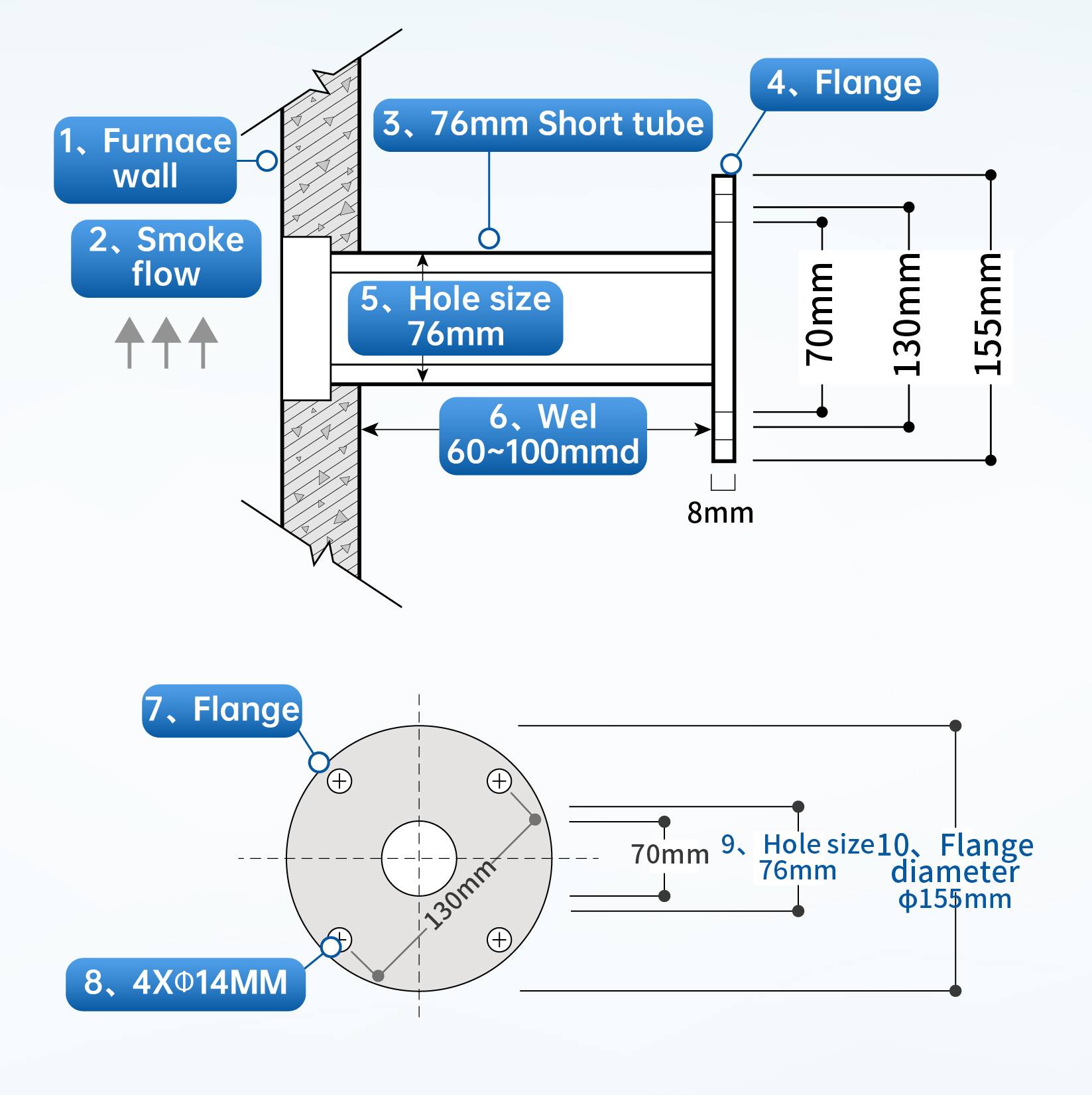

1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
Furnace wall |
Smoke flow |
76mm short tube |
Flange |
Hole size 76mm |
Wel 60~100mmd |
Flange |
4xφ14mm |
Hole size 76mm |
Flange diameter φ155mm |
