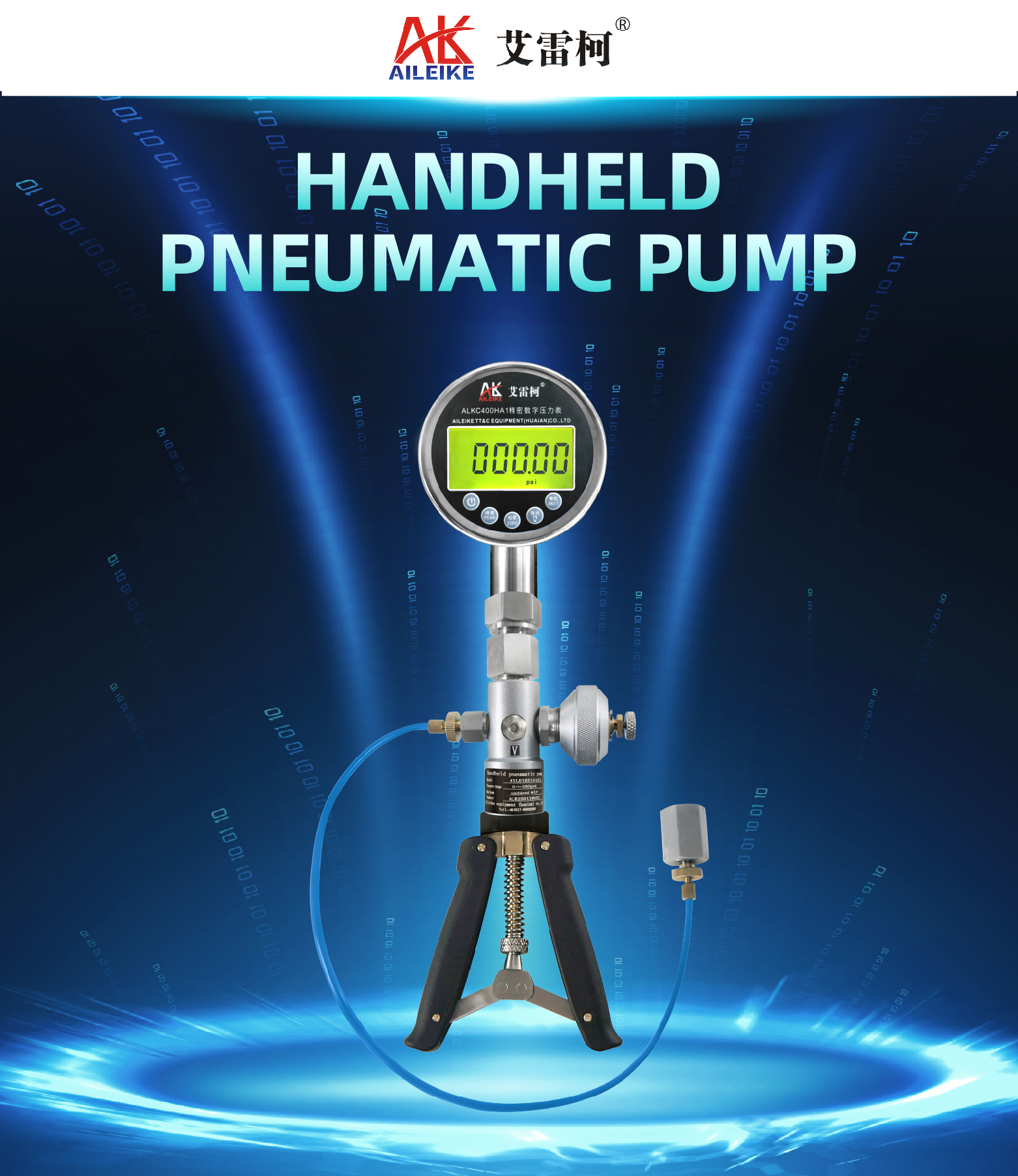

Marine air pressure pump AILEIKE104SG+ALKC400HA1+ALKJ01 0~580psi

ON/OFF
One click
power on/off

Unit switch key
mpa,kpa,mmHg
psi,bar,kgf/cm2

Peak value
H1:Display
peak value
L0:Display
valley value

Backlight
Backlight on
after pressing
the button

Zero calibration
Under no pressure
conditions
One click reset

Pressure relief
Valve
Close during suppression
At the end of the
measurement
Release gas

Pressure output port
Connection standard table

Fine tuning
Increase within a small
range or reduce pressure

Switching valve
Positive and negative

voltage switching

Do not switch under pressure

Pressure rod
Grip tightly and relax
Repeatedly carry out
Generating pressure

Pressure output port
Connect to the
checked table
Connecting threads:
M20X1.5

Product name	Handheld air pressure pump (Including pressure gauge and connector)
Model	AILEIKE104SG﹢ALKC400HA1+ALKJ01
Measuring range	0~580psi
Environmental conditions	Laboratory or field
Way of Pressure	Hand movement
Basic thread	M20×1.5
Applicable medium	Ambient air
Display	5-digit display
DC working time	≥ 40 hours
Accuracy	0.1%FS
Overload capacity	1.2 times the upper range limit
Power supply	Lithium battery ( ER14505 3.6V)
Net weight	Approximately 1.5Kg

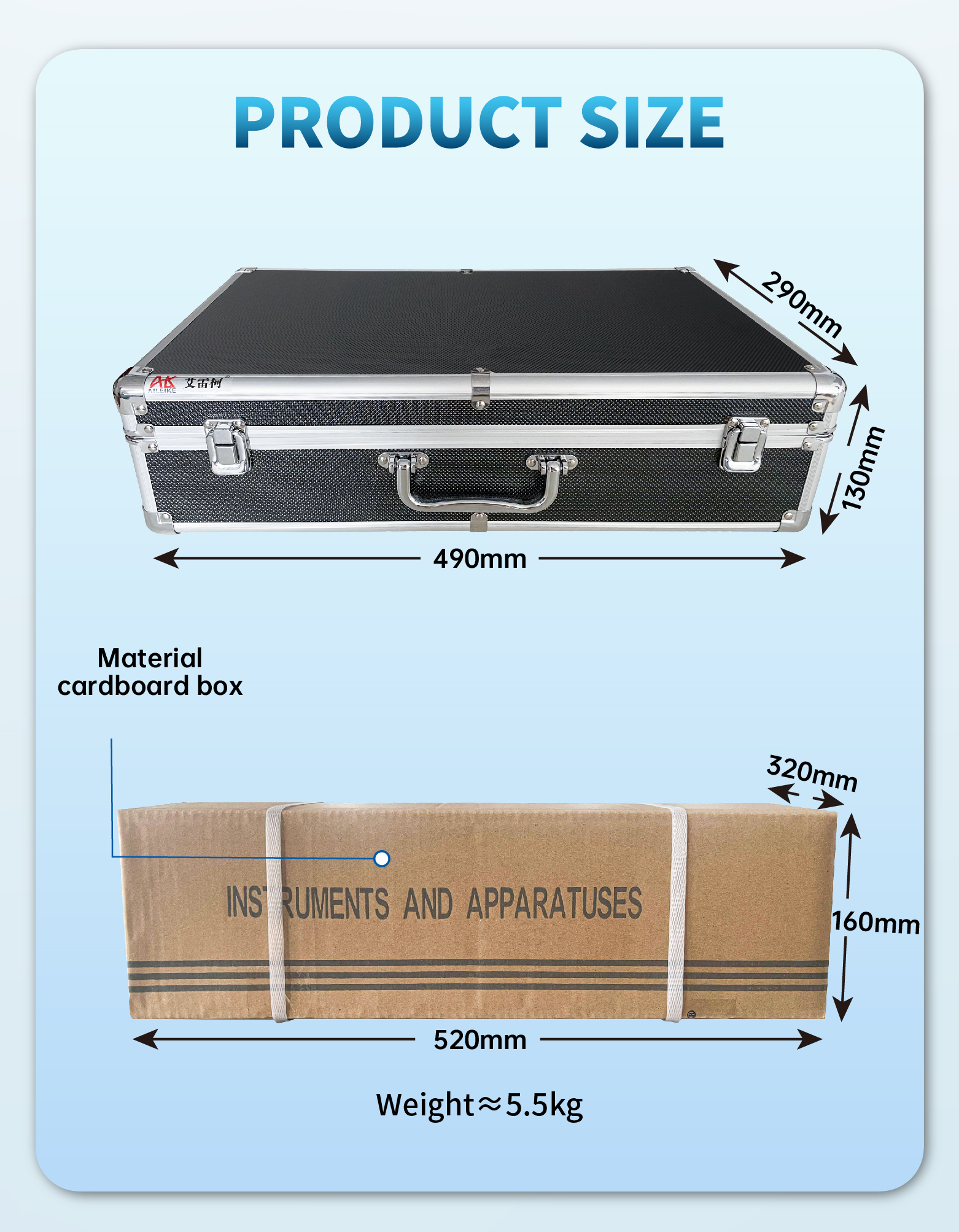

Size	425×110×50mm
Weight after product packaging	Approximately 5.5Kg
Product packaging size	520×320×160mm
Product standard configuration	Certificate of conformity x 1 copy Instructions x 1 copy Quality assurance card x 1 copy Output portplug x 1 piece Portable bag x 1 piece Gaskets x 40 piece PTFE sealing tape x 1 piece Pressure conversion joint x 14 piece

Equipped with fourteen conversion joints
M20X1.5(M) G1/8(F)	1 piece
M20X1.5(M) G1/4(F)	1 piece
M20X1.5(M) G1/2(F)	1 piece
M20X1.5(M) NPT1/8(F)	1 piece
M20X1.5(M) NPT3/8(F)	1 piece
M20X1.5(M) NPT1/4(F)	1 piece
M20X1.5(M) NPT1/2(F)	1 piece
M20X1.5(M) BSP1/4(F)	1 piece
M20X1.5(M) BSP3/8(F)	1 piece
M20X1.5(M) G1/8(M)	1 piece
M20X1.5(M) G1/4(M)	1 piece
M20X1.5(M) NPT1/8(M)	1 piece
M20X1.5(M) NPT1/4(M)	1 piece
M20X1.5(M) BSP3/8(M)	1 piece
