Description

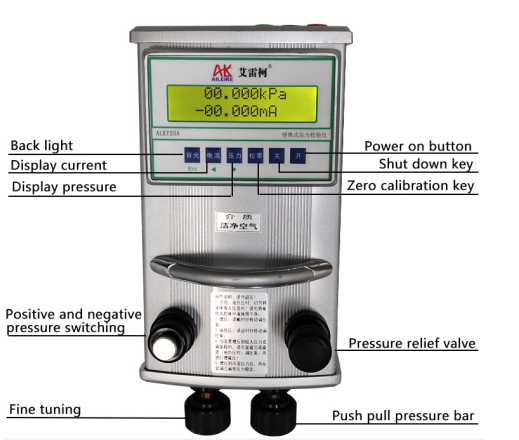

The portable pressure calibrator, algy25a, is a kind of portable instrument with AC and DC functions. It measures the current as well as the pressure, and displays a 24 volt DC output on the liquid crystal display. The integration of pressure source and display makes it an ideal field calibration instrument.
Pressure range: - 95 kPa ~ 2.5 MPa
Accuracy: 0.05% F.S
Adjustment sensitivity: Minimum 1 pa
Thread specification: M20 * 1.5 (as required)
Overall dimension: 300 * 150 * 120mm (length × width × height)
Output port: 2
Weight: 2.5kg
Medium: clean air
DC working time: ≥ 16h
Current measurement range: 0 ~ 22mA
DC output: 24 VDC
Ambient temperature: 5 ~ 50 ℃
Relative humidity: ≤ 80% RH
Display: 41 / 2LCD, 51 / 2LCD
Overload capacity: 1.2 ~ 1.5 times of the upper limit of the measuring range
